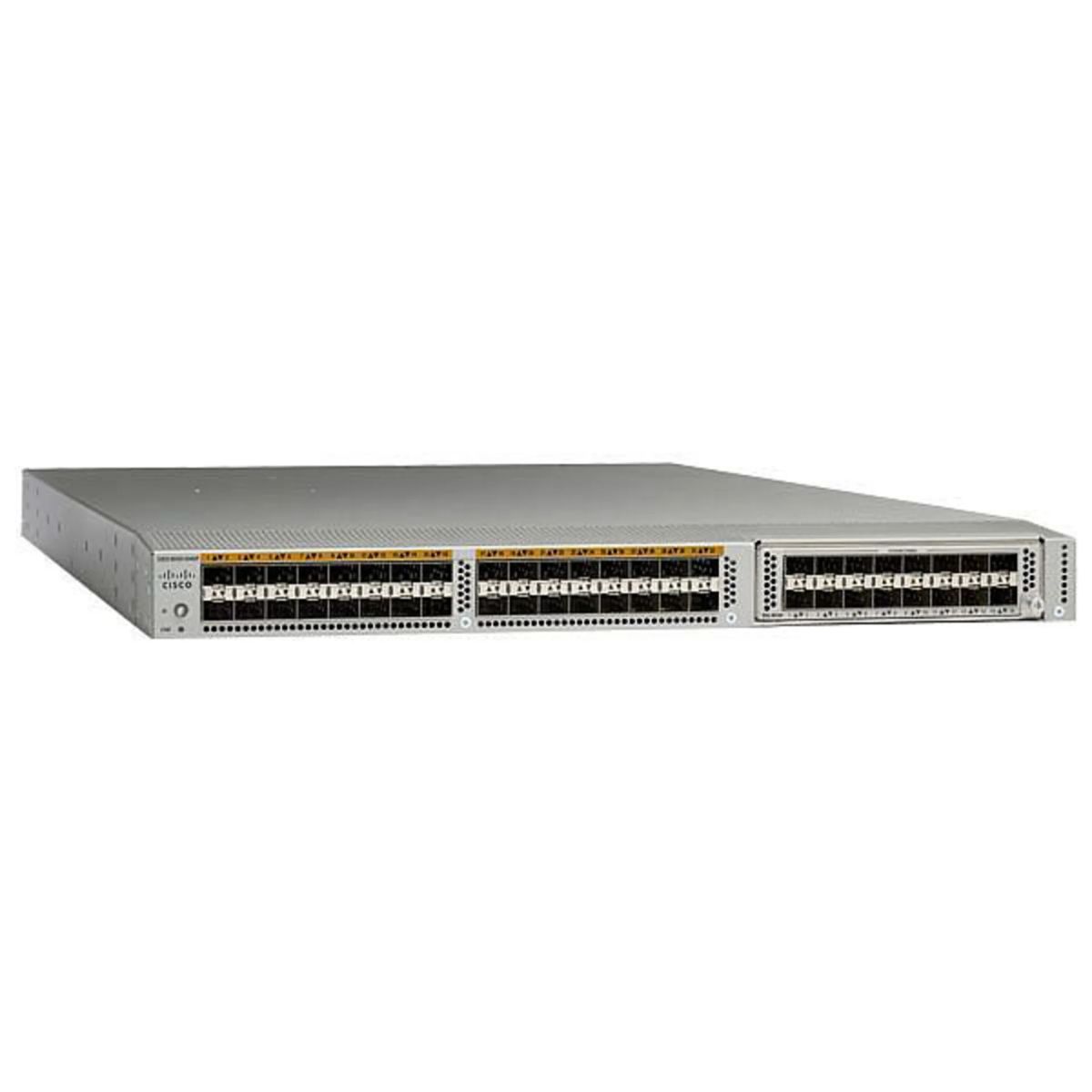

Коммутатор Cisco Nexus N5K-C5548UP-FA

Дополнительные лицензии и функционал (заказываются отдельно, уточняйте у менеджера)

License

Chassis Based or Port Based

Part Number

Supported Features and Platforms

Cisco Nexus 5548 FCoE NPV License

Chassis

N5548-FNPV-SSK9

FCoE NPV features supported on Cisco Nexus 5548

Cisco Nexus 5596 FCoE NPV License

Chassis

N5596-FNPV-SSK9

FCoE NPV features supported on Cisco Nexus 5596

Cisco Nexus 5500 Storage Protocols Services License, 8 Ports

Port

N55-8P-SSK9

Fibre Channel and FCoE and FCoE NPV features supported on any 8 ports of Cisco Nexus 5548 and 5596

Cisco Nexus 5500 Storage Protocols Services License, 48 Ports

Port

N55-48P-SSK9

Fibre Channel and FCoE and FCoE NPV features supported on any 48 ports of Cisco Nexus 5548 and 5596

Cisco Nexus 5500 Layer 3 Base Software License

Chassis

N55-BAS1K9

Static routing, RIPv2, OSPFv2, EIGRP stub, HSRP, VRRP, IGMPv2 and v3, PIMv2 (sparse mode), routed ACL; OSPF scalability is limited to 256 dynamically learned routes,
VRF-lite (IP-VPN)

Cisco Nexus 5500 Layer 3 Enterprise Software License

Chassis

N55-LAN1K9

Full EIGRP, OSPF with scalability up to 8000 routes, BGP; maximum routes supported by Layer 3 hardware: 8000 entries; uRPF

Cisco Nexus 5500 VM-FEX Software License

Chassis

N55-VMFEXK9

Cisco Data Center VM-FEX supported on Cisco Nexus 5548 and Cisco Nexus 5596

Cisco Nexus 5548 Enhanced Layer 2 Software License

Chassis

N5548-EL2-SSK9

Cisco FabricPath supported on Cisco Nexus 5548

Cisco Nexus 5596 Enhanced Layer 2 Software License

Chassis

N5596-EL2-SSK9

Cisco FabricPath supported on Cisco Nexus 5596

Cisco DCNM SAN Software License

Chassis

DCNM-SAN-N5K-K9

Cisco DCNM for SAN Advanced Edition for Nexus 5000 Series

Cisco DCNM LAN Software License

Chassis

DCNM-L-NXACCK9

Cisco DCNM for LAN Advanced Edition for Cisco Nexus 3000 and 5000 Series
