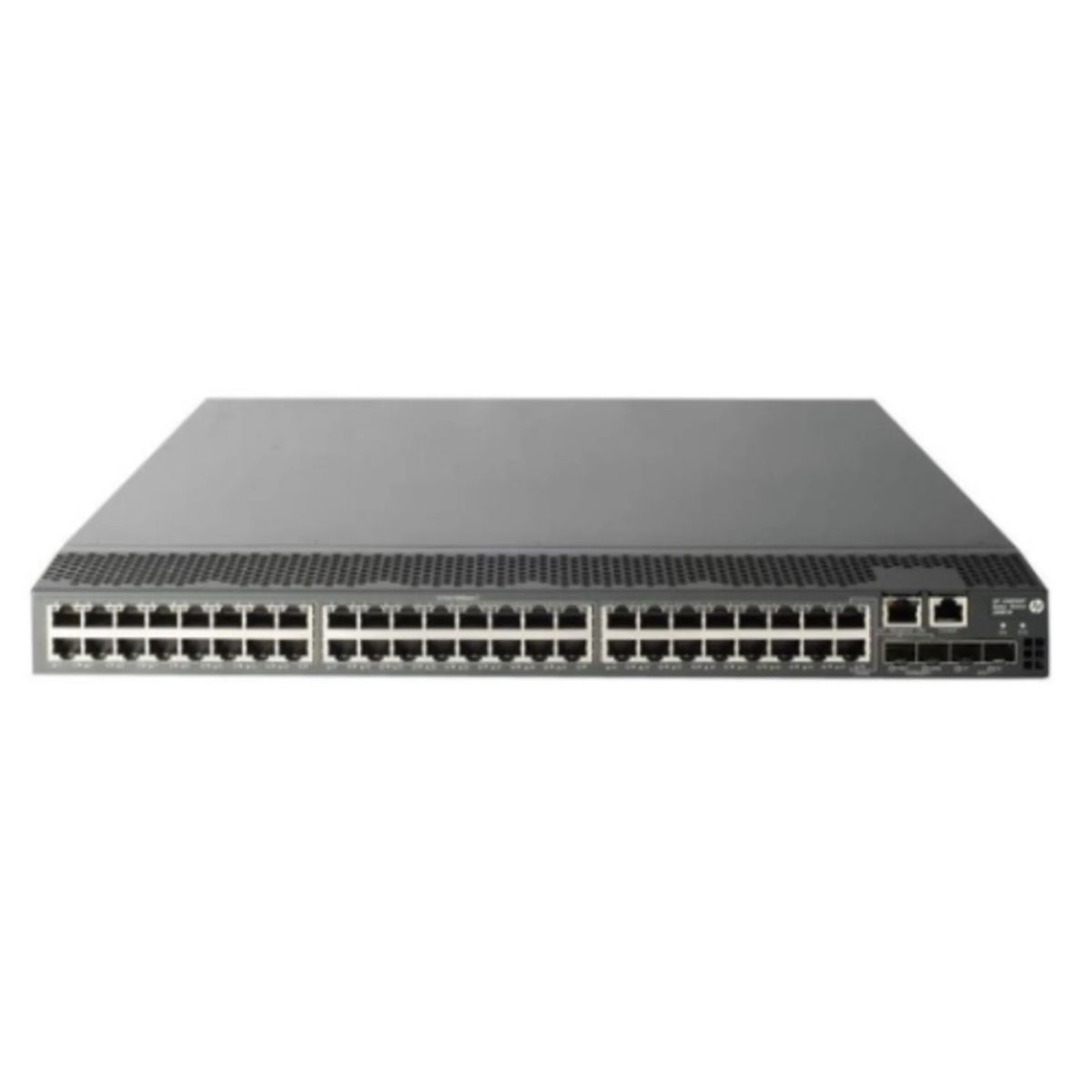

Коммутатор HP A5830AF-48G

Ports

● 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
● 2 dual-personality ports; auto-sensing 10/100/1000BASE-T or SFP

● 2 fixed 1000/10000 SFP+ ports

● 1 RJ-45 serial console port

● 1 RJ-45 out-of-band management port

● 1 extended module slot

Memory

● 1 GB SDRAM

● 64 MB flash

● packet buffer size: 1 GB

Performance

● Throughput: 119 million pps (64-byte packets)

● Switching capacity: 160 Gbps

● Routing table size: 12000 entrie

● MAC address table size: 32000 entries

Additional specifications

● Static MAC table: 5120

● Max VLAN interface: 1K

● Multicast L2 entries for IPv4: 2K

● Multicast L2 entries for IPv6: 1K

● Multicast L3 entries for IPv4: 2K

● Multicast L3 entries for IPv6: 1K

● VLAN table: 4K

● QOS forward queue number: 8

● Static ARP number: 1K

● Dynamic ARP number: 8K

● MAX number in one link group: 8

● Link group number: 128

● ACL number: 4K (ingress); 512 (egress)

Power supplies

● 2 power supply slots

● 1 minimum power supply required (ordered separately)

Fan tray

● 1 fan tray slot

Physical characteristics

● 1U

● 46 x 44 x 4.36 cm

● 6.59 kg
