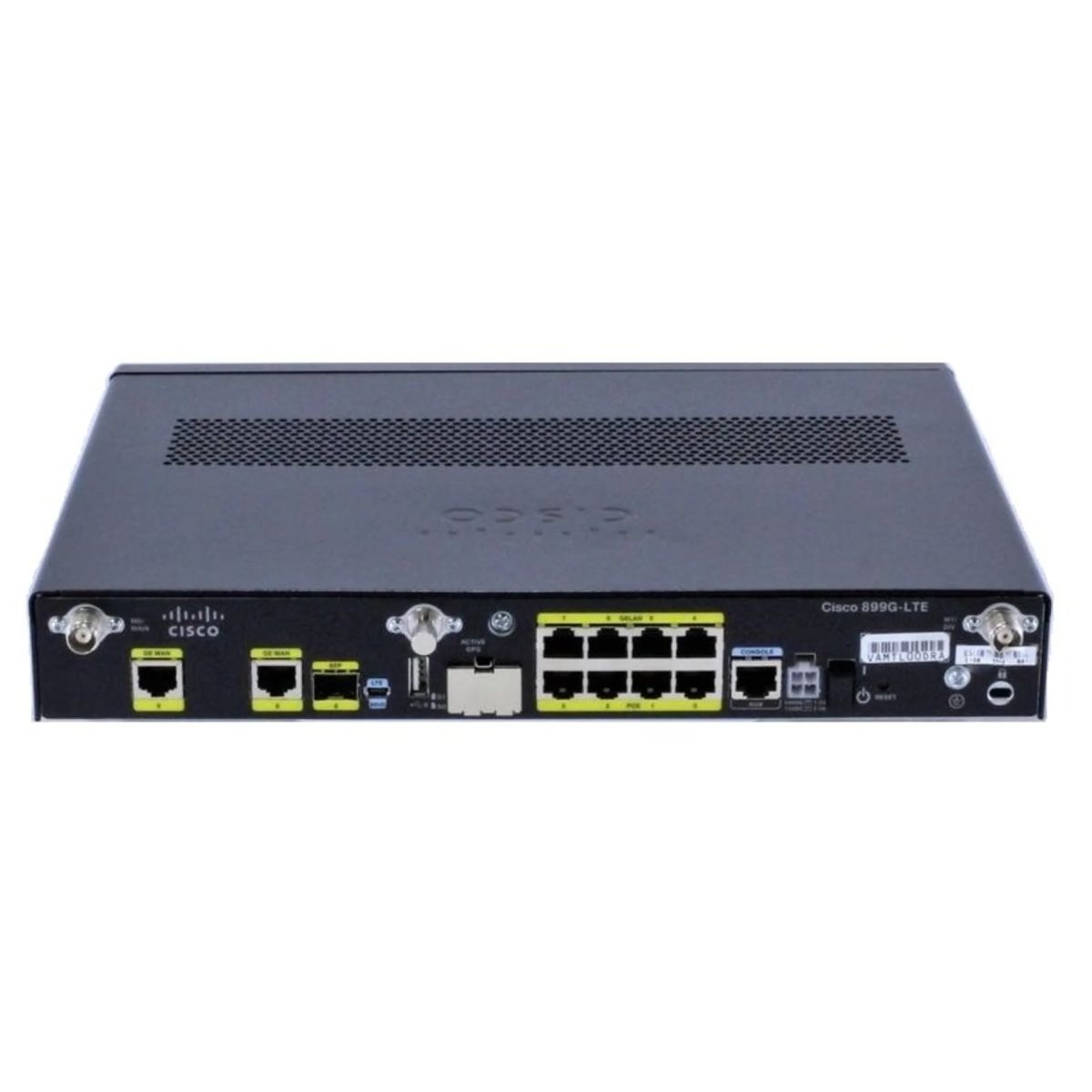

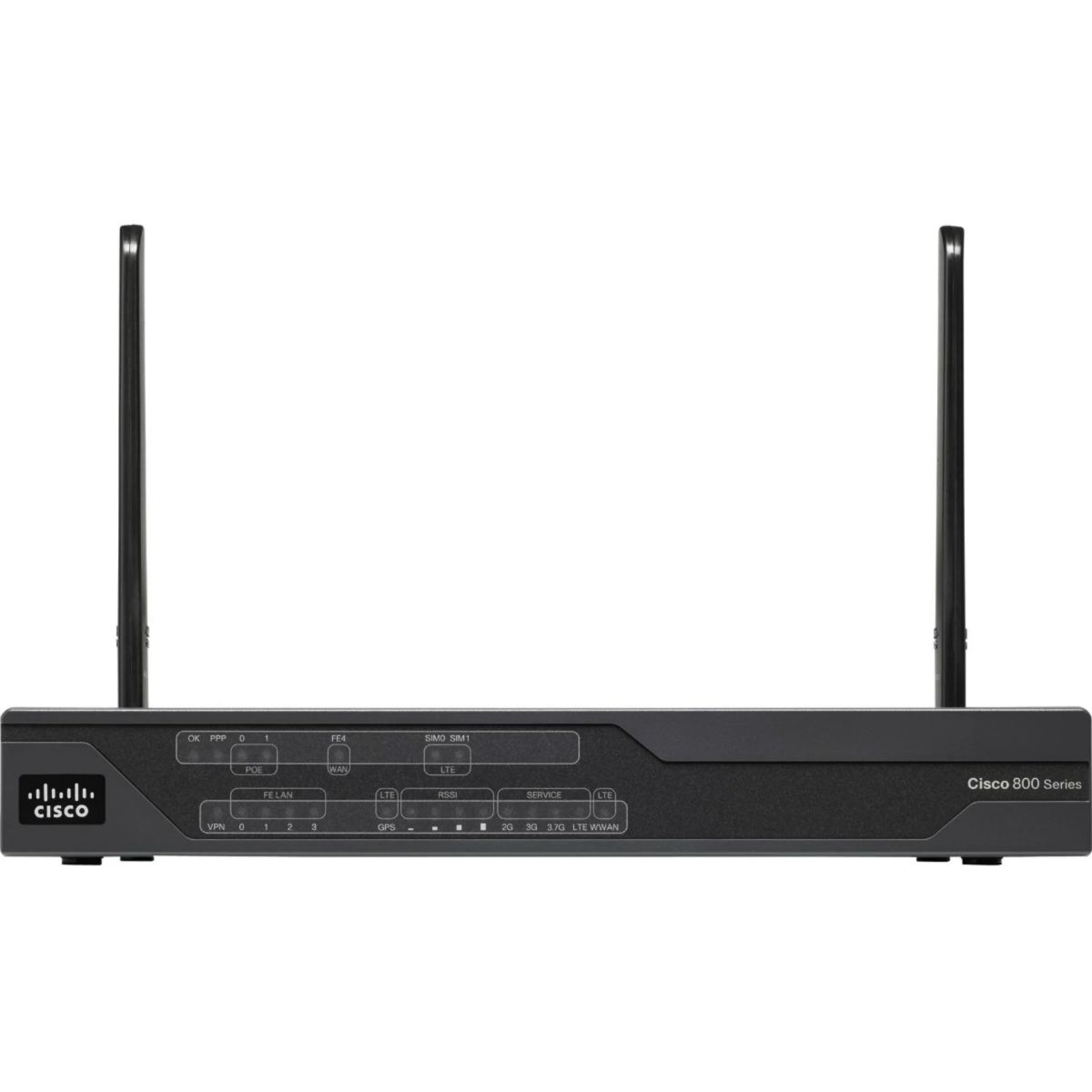

Маршрутизатор C899G-LTE-GA-K9

4G LTE modem form factor

● Embedded (included with the router)
● Upgrade FW Image Switching provisioning from (–GA SKUs) flash (FW-MC7304-LTE-AU or FWMC7304-LTE-GB)

Important 4G LTE features

● Automatic switch failover between primary and backup link
● Multichannel-interface-processor (MIP) profile configuration
● CDMA data retry
● 3G MIB with 4G LTE MIB extension and traps
● Remotely initiated data callback using voice
● Remotely initiated data callback using Short Message Service (SMS)
● Remote firmware upgrade over 4G LTE
● Virtual diagnostic monitoring
● SIM lock and unlock capabilitie

MIBs

● Enhanced 3G MIB with 4G MIB extension (4G parameters are covered with 3G MIB and 3G MIB extension)
● ENTITY MIB
● IF MIB
● 3G WWAN MIB persistence

4G LTE network management and diagnostics

● In-band and out-of-band management using Telnet (Cisco IOS Software command-line interface [CLI]) and SNMP, including MIB II and other extensions
● Industry-standard 4G LTE diagnostics and monitoring tools (Qualcomm CDMA Air Interface Tester [CAIT] and Spirent Universal Diagnostic Monitor [UDM])

Modem information

● Modem form factor: Embedded Peripheral Component Interconnect (PCI) minicard
● C88xG-4G-GA-K9 and C89xG(W)-LTE-GA-K9: Sierra Wireless MC7304 with Qualcomm MDM921
5

Wireless technologies supported (performance and throughput)

C88xG-4G-GA-K9 and C89xG(W)-LTE-GA-K9
Cisco LTE 2.0 800 MHz (band 20), 900 MHz (band 8), 1800 MHz (band 3), 2100 MHz (band 1), and 2600 MHz (band 7)

Backward compatibility:
● UMTS and HSPA+: 850, 900, 1900, and 2100 MHz
● Quad-band EDGE, GPRS, and GSM: 800, 900, 1800, and 1900 MHz
● HSPA+ speed DL up to CAT20 (42.2 Mbps) and UL up to CAT6 (5.76 Mbps)
● DC-HSPA+ speed DL with CAT24 (42.2 Mbps) and UL up to CAT6 (5.76 Mbps)
